Product Details:
Place of Origin: China
Brand Name: BZB
Certification: CE,TUV
Model Number: BZB-EX3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD20000-50000 Per Unit
Packaging Details: Export Pacakge or Metal Package
Delivery Time: 30-90
Payment Terms: TT or LC
Supply Ability: 2000sets Per Year
Contact Now
Detailed Product Description
Name: Industry Spray Booth Power Supply: 380V/50HZ/3Ph Or Other Option
Using Energy: Diesel,gas,steam,electric Or Other Option Main Door: Fold Style Or Electric Rolling Style
Motor: Chinese Brand Or Import Brand Control Sytem: Switch Style Or PLC Touch Screen Control
Wall: Metal Sheld,EPS,Rock Wool Of PU For Option Color: White Or Other Option
Application: Bus/truck Or Other Metallic Products Energy Sources: Water, Electricity,gas
Coating Thickness: 10-50um Dimention: As Require
High Light:

Folding Bus Spray Booth

,

Manual Bus Spray Booth

Manual folding booth bus spray booth gas heating


Manual folding booth specification PG-2022050009
Room size Inner size 17000×5000×5000(L×W×H)
  Outer size 21000×5560×5260 (L×W×H)
Room Structure

Paint shed for folding square pipe splicing skeleton, using high strength flame retardant PVC coated plastic cloth connection.
The steel frame skeleton slides on the ground through the bottom pulley, so that the paint shed shrinks and opens (with cross arm connection), with telescopic closing function, so that the workpiece is taken and placed.

  Roof panel High strength flame retardant PVC coated plastic cloth
  Ventilation system Air intake by naturally from front part, back wall for extraction.
Main door Structure Electric door
  Qty Door :5000×5000mm(W×H),1 set
Air return cabinet Structure It is made of profile and steel plate, galvanized steel plate with δ=0.8mm inside and outside, rock wool insulation material in the middle, spraying treatment on the outside;
  Qty 1 set
Exhaust system Fan specification 4-72-10C,air capacity:32000m³/h,full pressure:1400Pa,
  Motor Power:18.5KW,
  Driving mode Belt drive
  Qty Each group 18.5KW, 2 set, total air capacity: 32000m³/h
  Noise ≤85dB
Lighting system Ceiling light 14×1=14×20 W,LED;
  Installation Method Top mounted horizontally
  Lighting box type ATEX motor
  Specification 500LUX;:280W
Filter system Air return filter Maze filter paper + glass fiber filter
Air duct Material Made by δ=0.8 galvanized steel plate.
  Qty 8pcs straight pipe, one rain hat

Control system Material Turning type
  Control system Manual Folding Booth Bus Spray Booth Gas Heating Back Wall Extraction 0 start
  Function Painting ,lighting, emergency stop, failed alarm, time accumulator.

Voltage 380V,50HZ,3P Max temperature Room temperature
Air speed ≥0.35m/s Rated power 20KW
Color White or blue for option








This is Customer-made Industry Spray Booth base on customer's require.Workshop space.
Produce Capacity.Contact us if you have require.we can design to full fill your require.

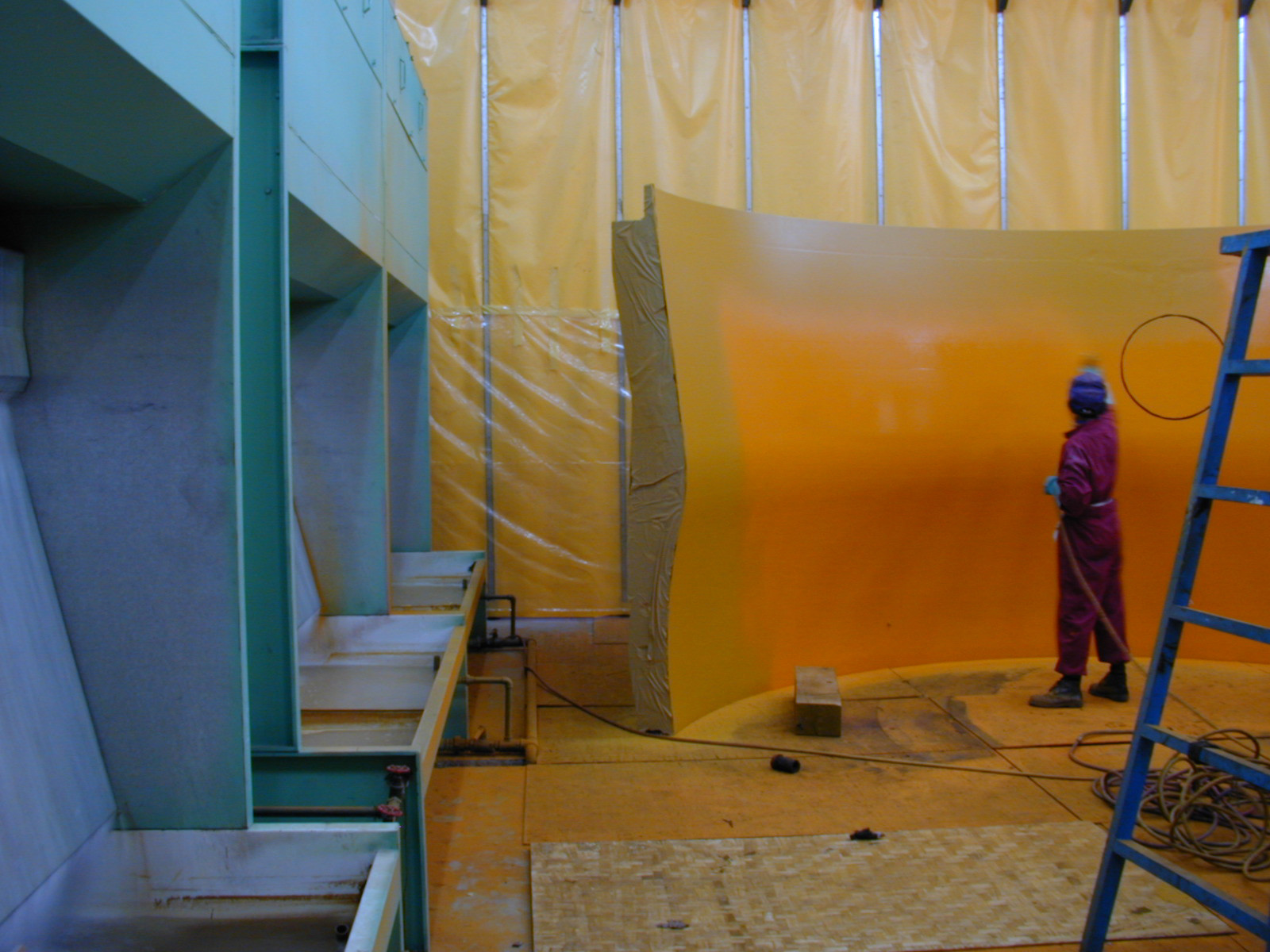

The follow Project is in Dandong ( A very big State-owned enterprise made Airports
and bridges project)





Some of our Project.
Manual Folding Booth Bus Spray Booth Gas Heating Back Wall Extraction 1

----------------------------------------FAQs-----------------------------------------

Are you Trade company or manufacturer?

We are the manufacturer with export liscence.We have two factory in Guangzhou and  in Jiangsu,China.

How can we cooperation?

How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
How about after sale serivce?

1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. One Year Gruantee.
