|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Export Pacakge or Metal Package|
|Payment Terms:||TT or LC|
|Supply Ability:||2000sets Per Year|
|Name:||Sandblasting Room||Power Supply:||380V/50HZ/3Ph Or Other Option|
|Main Door:||Canvas||Motor:||Chinese Brand Or Import Brand|
|Control Sytem:||Switch Style Or PLC Touch Screen Control||Wall:||EPS Or Steel With Rubber|
|Color:||White Or Other Option||Sand Collection:||Manual Or Automatic|
|Air Supplier:||4-6 Bar|
BZB Brand Sand Blasting Booth,
BZB Brand Shot Blasting Booth,
CE TUV Shot Blasting Booth

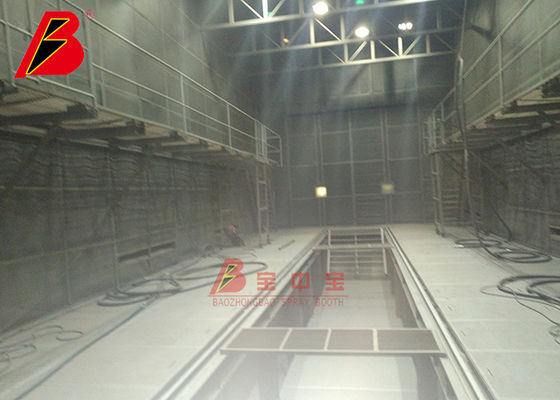

BZB Brand Industry Sand Blasting Booth/Shot Blasting Booth/Shot Blasting Room/Blast Room
It is suitable for sand blasting and derusting on the surface of containers, steel structural parts, tank parts,
large casting parts, pipe fittings, profiles and etc
Description for main Tech Parameter
|Sand Blasting Room Basic Parameter|
|1||Application||Containers, steel structural parts, tank parts, large casting parts, pipe fittings, profiles|
|2||Sand Blast Chamer||
1.Structure:50mm composite panels (0.6 mm galvanized sheet on each side of composite panels) and 4mm thickness white wear-resistent rubber protection.
2.Size: 15000*8000*6000mm, pit size:15000*8000*2700mm
3.Max. Workpiece Size: 7000*4000*3500mm
4.Max. weight: 10tons
|3||Sand blast pressure tank||
1. Model: 900L1-2, With 2 sets of Nozzle
2. Shot flow control (manual flow control + pneumatic valve control) : 0-30kg/min
3. Pressure adjust: 4-6 bar
|4||Shot Recovery System||
1. Recovery Type: Spiral Pusher + Elevator recovery
2. Max. recovery capacity: 95kgs/min for steel shoot, 45 kg/min for corundum abrasive
3. Elevator motor: 3kw, output rotate speed: 9.7rpm
|5||Storage Silo||Storage Capacity: 1000kgs|
1.Model: DC-24, 2 sets With the secondary filter system
2. Dust remove air volume: 2*23000m3/h
3. Dust emission: ≤50mg/M3
4. Fan motor: 22kw
1. Max. loading weight: 10ton
2. Motor: no power
3. Moving it by manual
|9||First Steel Shot Quantity||1000kgs|
This is Customer-made sandblast Room base on customer's require.Workshop space.
Produce Capacity.Contact us if you have require.we can design to full fill your require.
JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)
China North Produce Base (Jiangsu,Since 2007)
Some of our Project.
Are you Trade company or manufacturer?
We are the manufacturer with export liscence.We have two factory in Guangzhou and in Jiangsu,China.
How can we cooperation?
How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.
How about after sale serivce?
1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
