|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Export Pacakge or Metal Package|
|Payment Terms:||TT or LC|
|Supply Ability:||2000sets Per Year|
|Name:||Spray Painting Production Line||Power Supply:||380V/50HZ/3Ph Or Other Option|
|Using Energy:||Diesel,gas,steam,electric Or Other Option||Main Processes:||Pre-treament, Clean, Sanding,paint, Drying|
|Motor:||Chinese Brand Or Import Brand||Control Sytem:||Switch Style Or PLC Touch Screen Control|
|Characters:||Fireproof, Heat Insulation, Waterproof, Mould Proof, Etc||Color:||White Or Other Option|
|Application:||Metallic Products||Speed Of Conveying Chain:||1.0-2.5m/minute|
|Substrate:||Steel, Stainless Steel, Iron||Energy Sources:||Water, Electricity,gas|
|Coating Thickness:||10-50um||Production Beat:||30-90min/set|
Steel Structure Metal Fabrication Paint Booth,
Glass Window Metal Fabrication Paint Booth

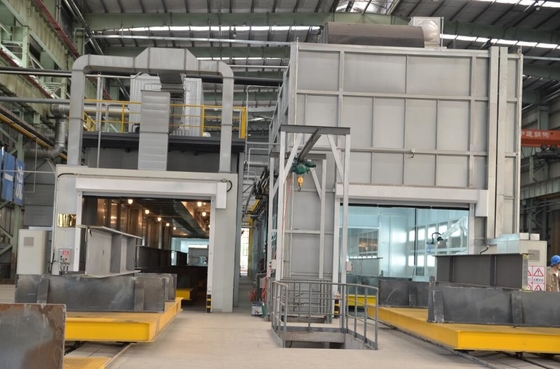

Metal Fabrication Paint Booth With Strong Steel Structure Room Glass Window Show
1. Professional Paint Booth for Steel Fabricate factory.
2. Automatic Transport system by electric trolley.
3. Room Stucture with steel and glass window.
4. Flexible PLC control System design
|1||Pretreatment: Dipping pretreatment with overhead crane, or fully automatic spraying pretreatment|
|2||Conveying system: light closed-circuit conveyor, power and free conveyor, overhead open conveyor, and so on|
|3||Oven: batch oven, hot air circulating drying oven, tunnel oven, bridge drying oven|
|4||Spray paint room type :Water spray paint room; Water spray paint room; Dry spray paint room; spray paint room|
|5||Control system: Switch style or PLC control, with or without touch screen|
How to choose coating equipment
1. The size and weight of workpiece,especially the max size and weight
2. Is there any requirements about the suspension of the workpiece?
3. The material of the workpiece
4. The anticipative output for the biggest size of the workpiece(how many pcs in 8 hours)
5. The length,width and height of the factory available for the powder coating line
6. The heating power:Liquefied Petroleum Gas, Liquefied natural gas,diesel,or electric?
7. Do you need to change colors every day? How many colors do you have in total?
8. Do you need automatic painting or manual painting?
9. Do you need pre-treatment process? If you do,you want spray pre-treatment or bath pre-treatment?
Online pre-treatment or offline pre-treatment?
10. The local electricity conditions(_V/_Phase/_Hz)
11. Do you have any special requirements about the package?
If you have any other requirement,please feel free to communicate with us.
This is Customer-made Painting line base on customer's require.Workshop space.
Produce Capacity.Contact us if you have require.we can design to full fill your require.
The follow Project is for Wuhan Ccmsa( A very big State-owned enterprise made Airports
and bridges project)
JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)
China North Produce Base (Jiangsu,Since 2007)
Some of our Project.
Are you Trade company or manufacturer?
We are the manufacturer with export liscence.We have two factory in Guangzhou and in Jiangsu,China.
How can we cooperation?
How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.
How about after sale serivce?
1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
