Prep Station Paint Booth Vehicle Pre Station Without Heating For Metal Sheet Paint Line

Prep Station Paint Booth Vehicle Pre Station Without Heating For Metal Sheet Paint Line

Prep Station Paint Booth Vehicle Pre Station Without Heating For Metal Sheet Paint Line
video
Prep Station Paint Booth Vehicle Pre Station Without Heating For Metal Sheet Paint Line
Product Details:
Place of Origin: China
Brand Name: BZB
Certification: CE,TUV
Model Number: BZB-6500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD4000-5000
Packaging Details: Export Pacakge or Metal Package
Delivery Time: 7-21
Payment Terms: TT or LC
Supply Ability: 2000sets Per Year
Contact Now
Detailed Product Description
Name: Spray Booth Power Supply: 380V/50HZ/3Ph Or Other Option
Heat System: Diesel,gas,steam,electric Or Other Option Main Door: Fold Style Or Electric Rolling Style
Motor: Chinese Brand Or Import Brand Control Sytem: Switch Style Or PLC Touch Screen Control
Wall: EPS,Rock Wool Of PU For Option Color: White Or Other Option
Total Power: 6kw Internal Size: 6.4x4x2.65m
Vehicle Style: Car
High Light:

Prep Station Paint Booth

,

Vehicle Prep Station Paint Booth

prep station paint booth vehicle Pre Station without heating for metal sheet paint line use





Cabin System
1. Roof air plenum construction: Cold rolling bending sprayed plate; Roof Panel: Galvanized steel,

Installation type: steel rope hoisting.
2. Front Side: PVC soft curtain slipping on Aluminum guide.
3. Two sides and back wallboard: EPS steel skin panel, 50mm Thick.
4. Basement: Anti-embroidered, Two Grid& Three Embossed Plate for walking platform;

novel and beautiful frame; good strength, stiffness, stability and impact.
5. Ramps: Two Ramps made of 3.0mm thick embossed plate, 600mm wide.



Circulation System
1. The air is exhausted through the basement.
2. Centrifugal Fan Model: YDW-5.6S; Capacity: 15000m3/h; Pressure: 800Pa; Speed: 900rpm,

power: 5.5kw, QTY: 1 set.
3. Fan Cabin: Section steel framework, assembly of coated steel plate cabin; Construction: Solid,

beautiful and easy for maintenance.

Air Purification system
Filtering Structure: Multi-storey fixed under the top network, no corrosion,

easy to replace the filter and can capture granules larger than 5μm.



Environmental System
The first floor filter under the grids can capture big granules.

The second fiberglass equipped in exhaust cabin can capture rest granules.



Lighting System
Ceiling Light: 6 sets*4pcs=24pcs 36w Philips Lamp; Light can make the room bright and uniform.

Ballasts Professional and durable.



Controlling System
It is assembled by good electronic components. Main circuit has Multi-protection. Working Switch,

Light Witch, Emergency Stop, Breakdown Alarm.



Specification for Preparation Room BZB-6500



1 Inside Size(mm) 6400×4000×2650 (L×W×H)
2 Outside Size(mm 7650×4106×3400 (L×W×H)
3 Total Power(KW) 6.5








Prep Station Paint Booth Vehicle Pre Station Without Heating For Metal Sheet Paint Line 0

Prep Station Paint Booth Vehicle Pre Station Without Heating For Metal Sheet Paint Line 1



About Us:

JingzhongJing(JZJ) Group company was set up in 1999,now is a large

comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,

Painting lines and Exhaust Gas
treatment equipments.
Main Product:
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;

Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment

for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)
Prep Station Paint Booth Vehicle Pre Station Without Heating For Metal Sheet Paint Line 2
China North Produce Base (Jiangsu,Since 2007)
Prep Station Paint Booth Vehicle Pre Station Without Heating For Metal Sheet Paint Line 3

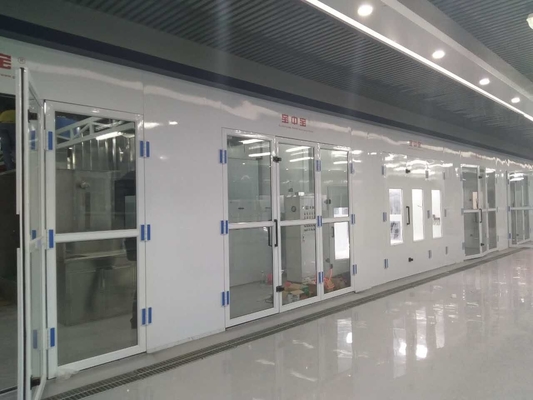

Some of our Project.
Prep Station Paint Booth Vehicle Pre Station Without Heating For Metal Sheet Paint Line 4

----------------------------------------FAQs-----------------------------------------

Are you Trade company or manufacturer?

We are the manufacturer with export liscence.We have two factory in Guangzhou and  in Jiangsu,China.

How can we cooperation?

How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.

How about after sale serivce?

1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
