Surface Cleaning Blasting Equipments BZB Sandblasting Room

Surface Cleaning Blasting Equipments BZB Sandblasting Room

  • Surface Cleaning Blasting Equipments BZB Sandblasting Room
Surface Cleaning Blasting Equipments BZB Sandblasting Room
Product Details:
Place of Origin: China
Brand Name: BZB
Certification: CE,TUV
Model Number: BZB-BF-X
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD40000-160000
Packaging Details: Export Pacakge or Metal Package
Delivery Time: 40-60
Payment Terms: TT or LC
Supply Ability: 2000sets Per Year
Contact Now
Detailed Product Description
Name: Sandblasting Room Power Supply: 380V/50HZ/3Ph Or Other Option
Main Door: Canvas Motor: Chinese Brand Or Import Brand
Control Sytem: Switch Style Or PLC Touch Screen Control Wall: EPS Or Steel With Rubber
Color: White Or Other Option Sand Collection: Manual Or Automatic
Dust Collector: Automatic Filter: Option
Trolley: Option Light: Explosion Lamb
Air Supplier: 4-6 Bar
High Light:

Surface Cleaning Blasting Equipments

,

BZB Blasting Equipments

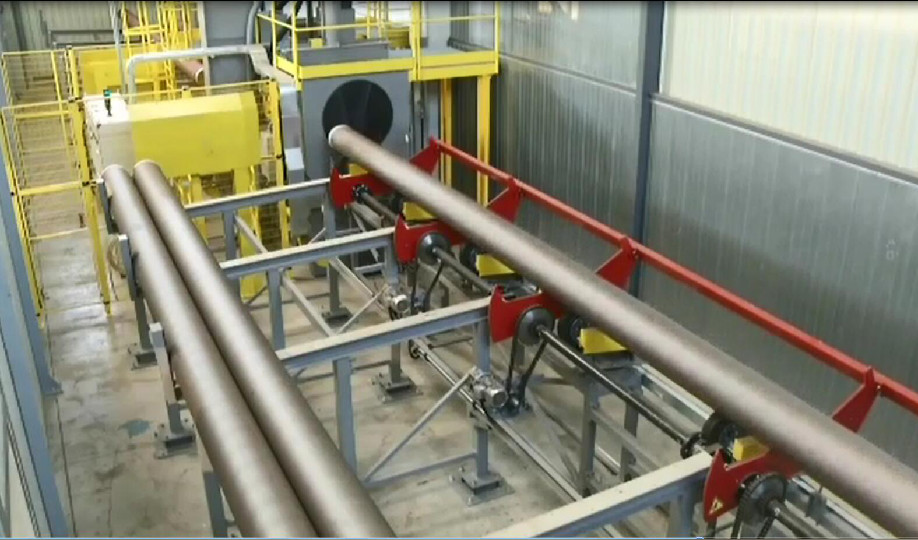

Steel Pipe Rust Clean-Automatic Sand Blasting Equipment



Product Application

It is suitable for Big Steel Piping sand blasting and derusting on the surface of different Piping etc



Description for main Tech Parameter



                                                        Sand Blasting Room Basic Parameter
1 Application Containers, steel structural parts, tank parts, large casting parts, pipe fittings, profiles
2 Sand Blast Chamer

1.Structure:50mm composite panels (0.6 mm galvanized sheet on each side of composite panels) and 4mm thickness white wear-resistent rubber protection.

2.Size: 15000*8000*6000mm, pit size:15000*8000*2700mm

3.Max. Workpiece Size: 7000*4000*3500mm

4.Max. weight: 10tons

3 Sand blast pressure tank

1. Model: 900L1-2, With 2 sets of Nozzle

2. Shot flow control (manual flow control + pneumatic valve control) : 0-30kg/min

3. Pressure adjust: 4-6 bar

4 Shot Recovery System

1. Recovery Type: Spiral Pusher + Elevator recovery

2. Max. recovery capacity: 95kgs/min for steel shoot, 45 kg/min for corundum abrasive

3. Elevator motor: 3kw, output rotate speed: 9.7rpm

5 Storage Silo Storage Capacity: 1000kgs
6 Dust Colloctor

1.Model: DC-24, 2 sets With the secondary filter system

2. Dust remove air volume: 2*23000m3/h

3. Dust emission: ≤50mg/M3

4. Fan motor: 22kw

7 Trolley

1. Max. loading weight: 10ton

2. Motor: no power

3. Moving it by manual

8 Total Power 69kw
9 First Steel Shot Quantity 1000kgs



This is Customer-made sandblast Room base on customer's require.Workshop space.

Produce Capacity.Contact us if you have require.we can design to full fill your require.

Surface Cleaning Blasting Equipments BZB Sandblasting Room 0



Surface Cleaning Blasting Equipments BZB Sandblasting Room 1





About Us:
JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
treatment equipments.
Main Product:
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)

Surface Cleaning Blasting Equipments BZB Sandblasting Room 2
China North Produce Base (Jiangsu,Since 2007)
Surface Cleaning Blasting Equipments BZB Sandblasting Room 3
Some of our Project.
Surface Cleaning Blasting Equipments BZB Sandblasting Room 4

----------------------------------------FAQs-----------------------------------------

Are you Trade company or manufacturer?

We are the manufacturer with export liscence.We have two factory in Guangzhou and  in Jiangsu,China.

How can we cooperation?

How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.

How about after sale serivce?

1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
