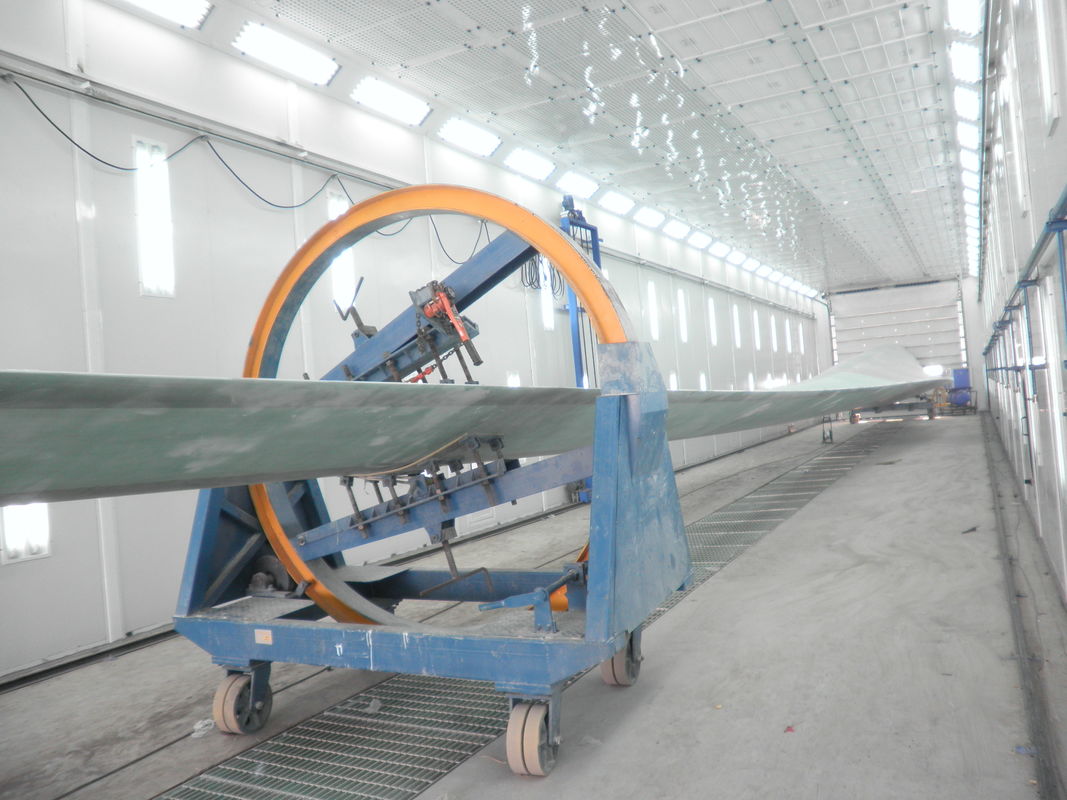

Wind Turbine Towers Paint Booth Big Wind Power Blade Paint Room

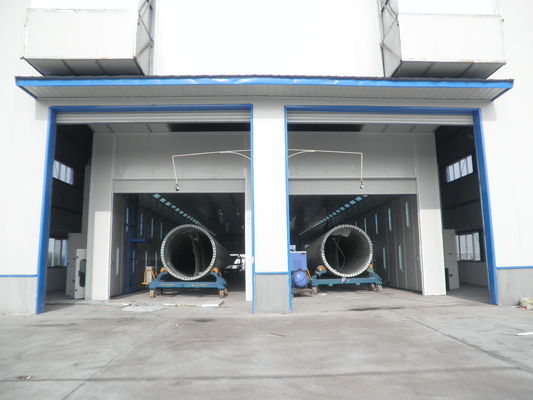

Wind Turbine Towers Paint Booth Big Wind Power Blade Paint Room

Wind Turbine Towers Paint Booth Big Wind Power Blade Paint Room
video
Wind Turbine Towers Paint Booth Big Wind Power Blade Paint Room
Product Details:
Place of Origin: China
Brand Name: BZB
Certification: CE,TUV
Model Number: BZB-BX1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD20000-1000000
Packaging Details: Export Pacakge or Metal Package
Delivery Time: 30-120
Payment Terms: TT or LC
Supply Ability: 2000sets Per Year
Contact Now
Detailed Product Description
Name: Wind Turbine Tower Spray Booth Power Supply: 380V/50HZ/3Ph Or Other Option
Using Energy: Diesel,gas,steam,electric Or Other Option Main Processes: Pre-treament, Clean, Sanding,paint, Drying
Motor: Chinese Brand Or Import Brand Control Sytem: Switch Style Or PLC Touch Screen Control
Wall: Metal Sheld,EPS,Rock Wool Of PU For Option Color: White Or Other Option
Application:: Metallic Products Speed Of Conveying Chain: 1.0-2.5m/minute
Substrate: Steel, Stainless Steel, Iron Energy Sources: Water, Electricity,gas
Coating Thickness: 10-60um
High Light:

Metal Shield Wind Turbine Towers Paint Booth

,

2.5m / Minute Wind Turbine Towers Paint Booth

Wind Turbine Tower Paint Booth Big Wind Power Blade Paint Room China Manufactuer







What is Wind Energy?

Wind energy is the most mature and developed renewable energy. It generates electricity by way of the strength of the wind using the kinetic energy produced by air currents. It is a clean, inexhaustible source of energy which reduces the emission of greenhouse gases and preserve the environment.

Wind energy has been used since antiquity to move sail-powered boats or drive windmill machinery by moving their blades. Since the early 20th century energy has been produced by way of wind generators. Wind energy moves a propeller and, by way of a mechanical system, it turns the rotor of a generator which produces electrical energy.

Wind generators are usually grouped into facilities called wind farms with a view to achieving a better use of the energy which reduces their environmental impact. The machines have a working life of twenty years.

What We can Offer?

We are Paint Booth manufactuer for Wind Tower.Offer Turn key project service.

Maint Process:



workpiece paint pre-treatment--cathodic electrodeposition primer coating-- PVC glue--weld seam sealing--

middle coating--surface coating and drying-- check and repair process--and complete coating of paint material

--products inspection work.



Some necessary main Equipment for some main process:



Systems Equipment Details
Pre-treamment

1. Flood wash equipment

2. Degrease equipment

3. Electrophoresis equipment

4. Electrophoresis equipment

Chain conveyor system 1. Aluminium fixture block
2. Chain transit unit
3. Steel alloy track
4. Inverterters & gear motor
Spray booth

1. Size:Customied
2. Fan exhaust system

3. Exhaust gas treatment system

4. Filter system
5. Lighting system
6. Control system

Oven 1. IR tunnel oven and UV machine
2. TEM:50-150 degree
3. Heating pipe and UV lamp
4. Mirror stainless steel inner wall
5. T50-150mm rock wood thermal insulation
6. China motor
Rotation unit 1. Selt-rotation sysem 2 sets
2. Auto spray gun hold(with scale)
3. Selt-rotation motor
4. Magiceye sensor
5. DEVELBISS spray gun 6 sets
Control system 1. Switch or PLC touching screen
2. air switch & overload ensure
3. Branded power switch & indicator light
4. Branded pneumatic elements & Magnetism valve



This is Customer-made Industry Spray Booth base on customer's require.Workshop space.

Produce Capacity.Contact us if you have require.we can design to full fill your require.

The Follow project is for Gaoke Blade Painting Line Project.Attached follow standard

dimention for reference



Wind Turbine Towers Paint Booth Big Wind Power Blade Paint Room 0

Wind Turbine Towers Paint Booth Big Wind Power Blade Paint Room 1

Wind Turbine Towers Paint Booth Big Wind Power Blade Paint Room 2









About Us:
JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
treatment equipments.
Main Product:
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)

Wind Turbine Towers Paint Booth Big Wind Power Blade Paint Room 3
China North Produce Base (Jiangsu,Since 2007)
Wind Turbine Towers Paint Booth Big Wind Power Blade Paint Room 4
Some of our Project.
Wind Turbine Towers Paint Booth Big Wind Power Blade Paint Room 5

----------------------------------------FAQs-----------------------------------------

Are you Trade company or manufacturer?

We are the manufacturer with export liscence.We have two factory in Guangzhou and  in Jiangsu,China.

How can we cooperation?

How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.

How about after sale serivce?

1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
