| Place of Origin: | China |
| Brand Name: | BZB |
| Certification: | CE,TUV |
| Model Number: | BZB-AX |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD25000-39000 |
| Packaging Details: | Export Pacakge or Metal Package |
| Delivery Time: | 30-45 |
| Payment Terms: | TT or LC |
| Supply Ability: | 2000sets Per Year |
| Name: | Protable Spray Booth | Power Supply: | 380V/50HZ/3Ph Or Other Option |
|---|---|---|---|
| Heat System: | Diesel,gas,steam,electric Or Other Option | Main Door: | Fold Style Or Electric Rolling Style |
| Motor: | Chinese Brand Or Import Brand | Control Sytem: | Switch Style Or PLC Touch Screen Control |
| Wall: | EPS,Rock Wool Of PU For Option | Color: | White Or Other Option |
| Total Power: | 16kw | Internal Size: | 9x4.5x3.5m |
| Exhaust System Style: | Dig The Ground/side Exhaust/Sime-donw Draft | Fit Vehicle Style: | Mini-bus/truck |
| High Light: | Portable Spray Booth,Auto Easy Container Paint Booth |
||
Portable Spray Booth Inflatable Auto Hail Repair Spray Booth Auto Easy Container Paint Booth
Quick Detail:

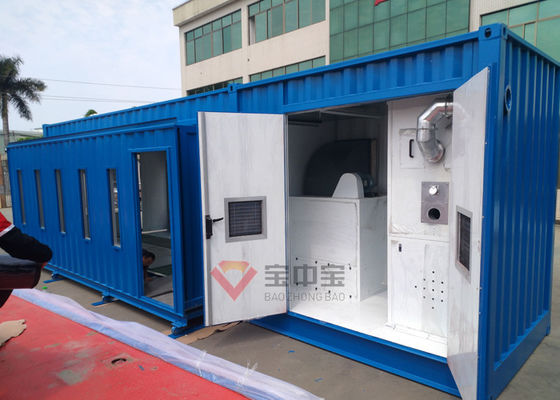

The container spray booth is design for moving from one place to another place easily,all assemble before delivery.
| Container Spray Booth Configuration Table | ||||
| Telescopic room inside size | 6954(L)*4200(W)*2458(H)mm | |||
| The outer diameter of the entire container | 10800(L)* 2438(W)*3400(H)mm(Close size) | |||
| The outer diameter of the entire container | 10800(L)* 4354(W)*3400(H)mm(Expand Size) | |||
| Main door | Front door with 2-leaf, 50mm thick EPS sandwich wall panels, size 2200×2400mm, (with large glass door), 6mm thick square tempered glass observation window, glass size 1150x550mm. | |||
| Safety door | 2 pieces, one for each side wall, 50mm thick EPS sandwich wall panel, with pressure lock and observation window | |||
| Equipment access door | 2 units, 50mm thick EPS sandwich insulation wall panel, size 2200x2200mm with pressure locks and cooling holes | |||
| Outer frame | Square pipe, I-beam, channel steel, bending parts, corrugated board and other welding machines | |||
| Air intake chamber | Full-down draft, the top is a full filter cotton structure, and the part near the cabinet is made with a mesh structure trawl | |||
| Basement |
|
|||
|
Supply and exhaust system |
1.The cabinet board is filled with rock wool for heat preservation, white, replacement the filter cotton and the normal inspection surface is movable board (the top frame has a movable board on one side) 2. Air supply: turbo fan DDF-7.5KW, direct drive ABB motor, 415V/50HZ/3PH 3. Exhaust air: TAE-450-7.5KW, belt drive ABB motor, 415V/50HZ/3PH 4,Generator group position: rear side |
|||
| Inlet and exhaust duct | Equipped with transfer ducts, 2 additional sections of air inlet duct + rain cap; 4 sections of exhaust duct + gravity damper | |||
| Filtering system |
1. Top filter: flame retardant 560G. 2. Ground filter: glass fiber cotton filter (green).
|
|||
| Sealing board wall |
1.As shown in the three-dimensional diagram, the outside is welded with corrugated board, and the inside of the room and the hot air need to be added with 50mm EPS insulation board 2.Single side corrugated board for non-ventilated part of equipment room |
|||
| Telescopic part | Manual push-pull telescopic track structure (2 people flexibly push and pull, such as video) | |||
| Heating system | 304 stainless steel heat exchanger, equipped with G20 diesel burner heating, equipped with 4 smoke pipes and rainhat | |||
| Lighting system | Australian external approach, 8 group of lower row lights | |||
| Electric control system | Equipped with conventional Australian method electric control system, star-delta start, with pressure gauge, wire color according to Australian requirements, etc. | |||
| Power supply | 415V,3phase,50HZ |
Total power
|
16.5KW | |
| Remark | Optional gas heating FS20 burner | |||
|
|
||||
About Us:
JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
treatment equipments.
Main Product:
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)
China North Produce Base (Jiangsu,Since 2007)
Some of our Project.
----------------------------------------FAQs-----------------------------------------
Are you Trade company or manufacturer?
We are the manufacturer with export liscence.We have two factory in Guangzhou and in Jiangsu,China.
How can we cooperation?
How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.
How about after sale serivce?
1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
