Water Tightness Test Booth For Car Auto Shower Booth

Water Tightness Test Booth For Car Auto Shower Booth

Water Tightness Test Booth For Car Auto Shower Booth
video
Water Tightness Test Booth For Car Auto Shower Booth
Product Details:
Place of Origin: China
Brand Name: BZB
Certification: CE,TUV
Model Number: BZB-JX5
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD10000-60000
Packaging Details: Export Pacakge or Metal Package
Delivery Time: 30-50
Payment Terms: TT or LC
Supply Ability: 200sets Per Year
Contact Now
Detailed Product Description
Name: R Test Booths Power Supply: 380V/50HZ/3Ph Or Other Option
Main Door: Curtain,Fold Style Or Electric Rolling Style Motor: Chinese Brand Or Import Brand
Control Sytem: Switch Style Or PLC Touch Screen Control Wall: EPS,metal For Option
Color: White Or Other Option Room Dimention: 6900*4000*2800mm
Rain Strength: ≥28mm/min(adjustable) Capacity Of Water Pump: ≥120m3/h
Water Supply Pressure: 0.1MPa Transportation Way: Drive Throught
High Light:

Water Tightness Test Booth

,

Auto Shower Booth

,

Auto Water Inspection Line

Water Tightness Test Booth Auto Shower Booth Expierenced Manufacturer in China



Product Application



This equipment mainly includes: spray system, filling water system, water cycle system, sewage system, electric control system, etc.

Project finish in Uruguay in 2021. It can use in different kind of verhicle,just like the big raining onto the surface of verhicle.



I The basis of design

1.1 The inner diameter of the rain room (length × width × height) mm: 10000 × 4000 × 4000 (spray inside size)

1.2 Shipping method: pass-through, manual opening

1.3 Equipment function: used for rain test of automobiles.

1.4 Rain intensity: 20mm/min

1.5 1st power supply: AC three-phase 220V±5% 50Hz

1.6 1 water supply pressure: 0.3MPa

1.7 Uses: It is suitable for detecting the water tightness of the car. Through the shower room, the conditions for

detecting the rain are similar to the natural state outside, to confirm the water-tight state of the workpiece, and to

implement silicon waterproofing for the parts that may leak.

1.8 Environment: noise ≤75dB

1.9 Rain time: 0-60min adjustable

1.10 Type of water: industrial circulating water.

1.11 Equipment installation environment: outdoor (no ceiling cover)



The Description about Technical Parameters for Water Test Booth



Item Technical Parameters
External dimension 7006×6800×3600mm(L×W×H)
Internal dimension 6900×3300×2800mm(L×W×H)
Room body Square steel structure
Side wall 50mm thickness EPS panel(0.5mm thickness color steel)
Roof panel 50mm thickness EPS panel(0.5mm thickness color steel)
Door structure Square electric PVC rolling door
Door dimension 3000×2600mm(W×H)
Quantity 2sets
Lighting system
Light 400 LUX
Lighting Qty Top:8sets×1pcs×40W light. Philip lamp
Waterproof degree IP65
Spraying system
Spray area dimension 6600×3500×2800mm(L×W×H)
Spray pipe plan arrange Left, right, top and bottom side
Suction pipe diameter DN80mm
Water supply pipe diameter DN65mm
Spray branch pipe diameter DN40mm
Spray pipe material Galvanization pipe
Qty. of Nozzle 186pcs (with 10pcs backup)
Nozzle Pressure 1.5 bar
Control System:
Control style Switch style control
Total Power 36.5KW
Control Voltage 380V/50HZ

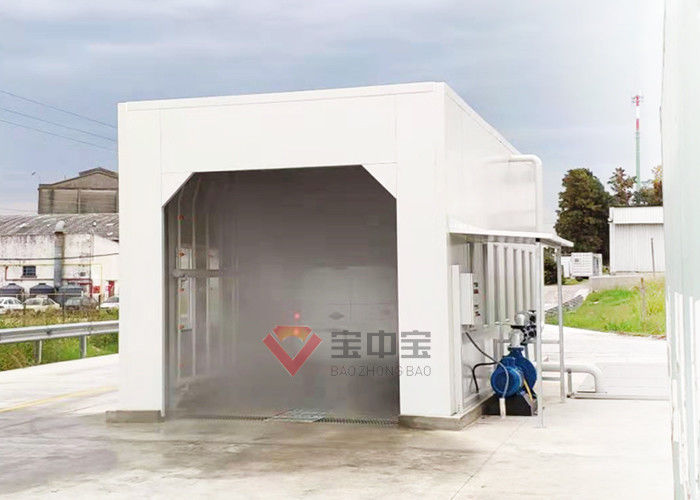

This is one Water Test Booth Project in Uruguay.We can accept
different kind of customied and can give Professional solution for customer.




Water Tightness Test Booth For Car Auto Shower Booth 0

Water Tightness Test Booth For Car Auto Shower Booth 1

Water Tightness Test Booth For Car Auto Shower Booth 2

About Us:
JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
treatment equipments.
Main Product:
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)
Water Tightness Test Booth For Car Auto Shower Booth 3
China North Produce Base (Jiangsu,Since 2007)
Water Tightness Test Booth For Car Auto Shower Booth 4
Some of our Project.
Water Tightness Test Booth For Car Auto Shower Booth 5
