|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Export Pacakge or Metal Package|
|Payment Terms:||TT or LC|
|Supply Ability:||200sets Per Year|
|Name:||Vehicle Rain Test Booths||Power Supply:||380V/50HZ/3Ph Or Other Option|
|Main Door:||Curtain,Fold Style Or Electric Rolling Style||Motor:||Chinese Brand Or Import Brand|
|Control Sytem:||Switch Style Or PLC Touch Screen Control||Wall:||EPS,metal For Option|
|Color:||White Or Other Option||Room Dimention:||6900*4000*2800mm|
|Rain Strength:||≥28mm/min（adjustable）||Capacity Of Water Pump:||≥120m3/h|
|Water Supply Pressure:||0.1MPa||Transportation Way:||Drive Throught|
6900mm Shower Water Test Booths,
6900mm Water Test Booths,
36.5KW Water Test Booths
Shower Test Line for Buses and Cars Water Test Booth Shower Testing Booth
The water test room was used to test the water Sealing of the vehicle, By shed rain, the rain testing
conditions is similar to their natural state phase, to confirm the Water seal status of the vehicle,
implement leaky silicone waterproof to the part that may leak water.
The Description about Technical Parameters for Water Test Booth
|Room body||Square steel structure|
|Side wall||50mm thickness EPS panel(0.5mm thickness color steel)|
|Roof panel||50mm thickness EPS panel(0.5mm thickness color steel)|
|Door structure||Square electric PVC rolling door|
|Lighting Qty||Top:8sets×1pcs×40W light. Philip lamp|
|Spray area dimension||6600×3500×2800mm(L×W×H)|
|Spray pipe plan arrange||Left, right, top and bottom side|
|Suction pipe diameter||DN80mm|
|Water supply pipe diameter||DN65mm|
|Spray branch pipe diameter||DN40mm|
|Spray pipe material||Galvanization pipe|
|Qty. of Nozzle||186pcs (with 10pcs backup)|
|Nozzle Pressure||1.5 bar|
|Control style||Switch style control|

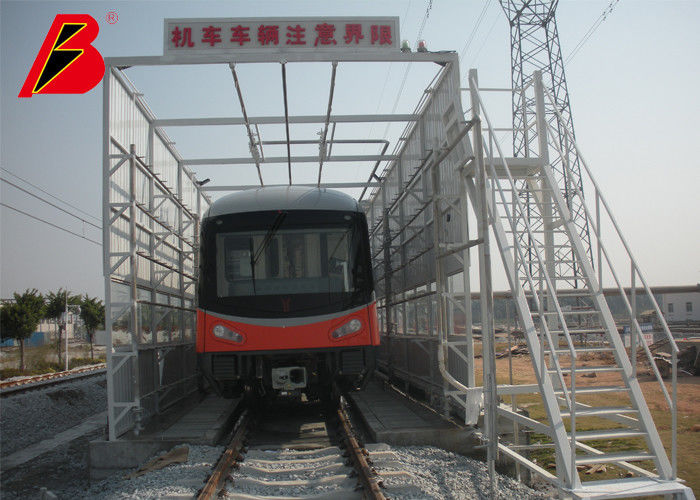

This is one Water Test Booth Project in South Vehicle in China.We can accept
different kind of customied and can give Professional solution for customer.
JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)
China North Produce Base (Jiangsu,Since 2007)
Some of our Project.
Are you Trade company or manufacturer?
We are the manufacturer with export liscence.We have two factory in Guangzhou and in Jiangsu,China.
How can we cooperation?
How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.
How about after sale serivce?
1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
