|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Export Pacakge or Metal Package|
|Payment Terms:||TT or LC|
|Supply Ability:||2000sets Per Year|
|Name:||Paint Spray Booth||Power Supply:||380V/50HZ/3Ph Or Other Option|
|Heat System:||Diesel,gas,steam,electric Or Other Option||Main Door:||Fold Style Or Electric Rolling Style|
|Motor:||Chinese Brand Or Import Brand||Control Sytem:||Switch Style Or PLC Touch Screen Control|
|Wall:||EPS,Rock Wool Of PU For Option||Color:||White Or Other Option|
|Total Power:||8kw||Interal Size:||6.9x3.9x2.65m|
|Vehicle Style:||Car||Market:||South America|
Heated Paint Booth,
Car Spray Booth
Heated Paint Booth Paint Shop Equipment Car Spray Booth Maintenance Services
Industrial Spray Booth Applications
Four main types of applications are completed in an industrial spray booth. First, industrial spray booths are used for woodworking. This can include furniture, doors, shutters, and POS systems. Second, these booths are utilized for composite materials, which include fiberglass, metal alloys, and carbon fiber. Third, spray booths provide safety in power coating, which covers conveyer systems, ovens, and sand blasting. Finally, industrial spray booths are advantageous in metal working. This can includes structural steel, wrought iron, and furniture.
This is an efficient car spray booth suitable for South America Market

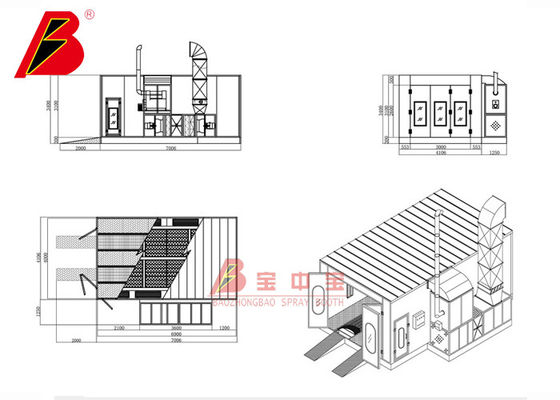

|(2)BZB-8100EX Spray booth||Extend Model|
|Inner size||6900×4000×2650 mm|
|Outer size||7000×5360×3400 mm|
|Main door||3 folds, Enter size:3000×2600mm(W×H), Door frame without rim, 50mm EPS panel.|
|Personal door||1 set,Enter size:1800×650mm(W×H),With pressure lock and view glass window|
|Room body system||
1. 50mm EPS wall panel (White) , 0.326mm color plate, tongue and groove.With steel rim cover at the two sides
2. Roof panel made by 0.8mm thickness galvanized steel plate.
Height: 300mm, galvanized steel plate.
Floor: 2 rows steel grating (Painting), 3 rows checked plate (Painting).
Ramp:2x 600mm checked plate ramps(Painting)
|Intake and Exhaust system||
1. Air cabinet made by spraying sectional material and spraying steel plate, covered by galvanized steel plate, with rock wool panel inside.
2. Intake Fan: 1*7.5 KW single inlet big blade Turbo fan, model BZB-710, and air capacity 22000m3/h.
3. Exhaust fan: 1*5.5 KW single inlet big blade Turbo fan, model BZB-630, and air capacity 20000m3/h.
|Air ducting||4 pieces straight pipe,1 piece 90 elbow, 0.8mm,Galvanized steel plate and flange|
Roof filter; Pre-filter:M style
Ceiling filter: 2 rows fiber glass filter
|Lighting system||Ceiling lighting: 8 groups*4pcs=32pcs, 16W LED tube.
Side lighting: 8 groups*2pcs=16pcs, 16W LED tube.
Italy Riello G20 Diesel fuel burner
304 stainless steel heat exchanger
With 4 pcs chimney (galvanized steel) and 2 elbow. With bracket for oil tank.
Pneumatic damper switch Painting and Baking system
|Control system||Button type control box. Normal temperature spraying, lighting switch, emergency stop switch, failure alarm, timer..Motor Direct start.|
|Air speed||≥0.25m/s||Highest temperature||80 degree|
|Color||Doors are Blue,others are white (Other color requie should remark before order)|
JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)
China North Produce Base (Jiangsu,Since 2007)
Some of our Project.
Are you Trade company or manufacturer?
We are the manufacturer with export liscence.We have two factory in Guangzhou and in Jiangsu,China.
How can we cooperation?
How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.
How about after sale serivce?
1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
Contact Person: admin
