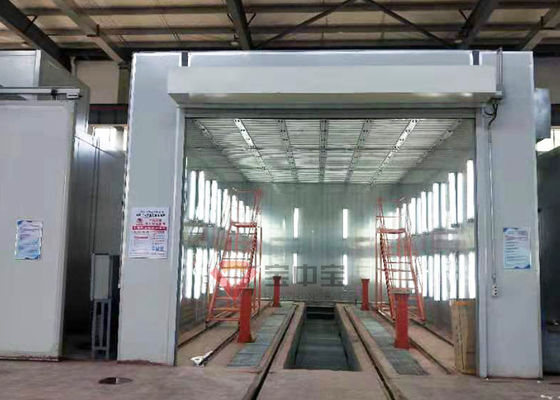

Military Spray Booth with Manlift working Platform Paint booth

Military Spray Booth with Manlift working Platform Paint booth

  • Military Spray Booth with Manlift working Platform Paint booth
  • Military Spray Booth with Manlift working Platform Paint booth
Military Spray Booth with Manlift working Platform Paint booth
Product Details:
Place of Origin: China
Brand Name: BZB
Certification: CE,TUV
Model Number: BZB-BF15
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD25000-35000
Packaging Details: Export Pacakge or Metal Package
Delivery Time: 30-45
Payment Terms: TT or LC
Supply Ability: 2000sets Per Year
Contact Now
Detailed Product Description
Name: Spray Booth Power Supply: 380V/50HZ/3Ph Or Other Option
Heat System: Diesel,gas,steam,electric Or Other Option Main Door: Fold Style Or Electric Rolling Style
Motor: Chinese Brand Or Import Brand Control Sytem: Switch Style Or PLC Touch Screen Control
Wall: EPS,Rock Wool Of PU For Option Color: White Or Other Option
Total Power: 65Kw Internal Size: 15x5x5m
Exhaust System Style: Dig The Ground/side Exhaust/Sime-donw Draft
High Light:

Bus Infrared Spray Booths


65Kw Infrared Spray Booth


Bus Infrared paint Booth

Bus Infrared Spray Booth with Infrared light Heat system Manlift working Paint booth


Quick Detail:


1. Painting Room with Infrared Light Heat system

2. Can be drive throught design

3. With Man lift inside to be convirionient to worker do the painting job

4. Side desgin according custome's requrie


Specificaiton for Bus Big spray booth.


No. Item Unit Value Remark
1 Equipment type   One-way entry
2 Air-inlet type

Up air-inlet

Below air-return

3 Mist treatment   Dry fiber glass filter
4 VOC treatment   Activated carbon
5 Internal dimension(LxWxH) mm 15000×5000×5000



mm 15156×6906×6500
7 Main door(WxH) mm 4000×4500
8 Roller door(WxH) mm 5600×5500
9 Service door(WxH) mm 800×2000 2pcs
10 In take fan kw 2 sets.each set with 2x7.5kw YDW fan. 80000m3/h
11 Exhaust fan kw 2 sets,Each set with 1x15kw fan 72000m3/h
12 Heating supply   2 sets,each set with 1 unit RG5S Riello Burner Diesel
13 Maximum baking temp. 80
14 Heating time min 25-35
15 Empty-loaded air speed m/s ≥0.25
16 Noise dB(A) ≤85
17 Air filtration efficiency   >98%
18 Mist filtration efficiency   ≥95%
19 Illumination Lux ≥1000
20 Total power kw 140KW




1) Two rows of pits with galvanized duty-bearing grids for air sucking.
2) Wall panel is 75mm EPS, heat preservation, steel plate thickness 0.476mm, wall panel equipped structural

steel upright and composite beam.
3) All light are Philips lamp, Ballasts Professional and durable, more steadily than electronic headlamp.
4) Inlet use 4 sets 7.5kw Centrifugal Outer-rotor F-category Insulated Ventilator, exhaust fan use 2 sets 15kw

fan blade belt drive fan, increase the air speed, the positive internal air-pressure effectively prevents the dust

without from going into the area so that the quality of paint spraying is thus guaranteed.
5)  Electric Heat System.
6) Optional: 3D platform lift system.
7) Optional: side exhaust instead of 2 rows of pits.



Military Spray Booth with Manlift working Platform Paint booth 0

About Us:
JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
treatment equipments.
Main Product:
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)
Military Spray Booth with Manlift working Platform Paint booth 1
China North Produce Base (Jiangsu,Since 2007)
Military Spray Booth with Manlift working Platform Paint booth 2
Some of our Project.
Military Spray Booth with Manlift working Platform Paint booth 3
Are you Trade company or manufacturer?
We are the manufacturer with export liscence.We have two factory in Guangzhou and  in Jiangsu,China.
How can we cooperation?
How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.
How about after sale serivce?
1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
