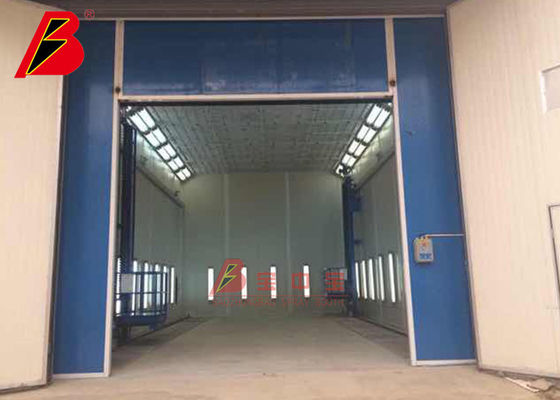

TUV large Truck vehicle Industrial Spray Booth with 3D lift inside

TUV large Truck vehicle Industrial Spray Booth with 3D lift inside

TUV large Truck vehicle Industrial Spray Booth with 3D lift inside
video
TUV large Truck vehicle Industrial Spray Booth with 3D lift inside
Product Details:
Place of Origin: China
Brand Name: BZB
Certification: CE,TUV
Model Number: BZB-EX27
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD20000-50000 Per Unit
Packaging Details: Export Pacakge or Metal Package
Delivery Time: 30-90
Payment Terms: TT or LC
Supply Ability: 2000sets Per Year
Contact Now
Detailed Product Description
Name: Industry Spray Booth Power Supply: 380V/50HZ/3Ph Or Other Option
Using Energy: Diesel,gas,steam,electric Or Other Option Main Door: Fold Style Or Electric Rolling Style
Motor: Chinese Brand Or Import Brand Control Sytem: Switch Style Or PLC Touch Screen Control
Wall: Metal Sheld,EPS,Rock Wool Of PU For Option Color: White Or Other Option
Application: Bus/truck Or Other Metallic Products Energy Sources: Water, Electricity,gas
Coating Thickness: 10-50um Dimention: As Require
High Light:

TUV vehicle Industrial Spray Booth

,

TUV Truck Industrial Spray Booth

,

TUV 3Ph Truck Spray Booth

Big Spray Booth with 3D lift inside Paint/Baking Room for Truck Customied Design





Product Application



The equipment line use in Helicopter main components coating line under Constant temperature and humidity.We design

the suitable solution according the require at site.



Main Process:



Sanding--PVC--Base Paint--Drying--middle coating--surface coating and drying



Main Specification :



The follow specification just one standard size for reference.





Inner dimension

15000×5000×5000mm(L×W×H).

external dimension



15144×6896×5600mm(L×W×H).
basement 2 basements.single one size:13000×840 mm(L×W)
front door Side opening door,4 doors,4000×4500 mm(W×H),color:white
operation door 2 doors,700×2000mm(W×H),color:white
wall 3 Steel reinforcements in the wallboard,3 Steel composite beams in roof.wallboard thickness:70mm,width:1150mm,filled with EPS.two color plate:0.476mm,color:white
lamps Top lamps:18*4=72,36w.bottom lamps:14*4=56,36w,(left/6,right/6,back/2)
structure Air-in from the roof,Square pipe steel framework


Air-in blower:4 Double inlet air centrifugal fans.technical parameters of each one:model:YDW5.6M,power:5.5KW,capacity:15000m3/h.

Air-out blower:2 Double inlet air centrifugal fans,technical parameters of each one:model:DKF,power:11KW,capacity:36000m3/h.belt drive

heating system 2 Riello G20 burners,2 sets of stainless steel heat exchanger,2 electric throttle perform spray paint cycle.maximum calorific value:400000Kcal/h.

filtration system



Primary filter, advanced filtering, glass cotton filter,M type activated carbon filter and single-layer flat drive fiber glass filter.
roof Galvanized sheet bending roof
control system Spray paint,lacquer that bake of temperature, drying time setting, lighting switch, failure indicator, temperature controller. The power switch, stop switch. With temperature limiter.

voltage frequency



1×220 3×380 50HZ
maximum working temperature 80℃
wind speed ≥0.25m/s
total power 49KW



This is Customer-made Industry Spray Booth base on customer's require.Workshop space.

Produce Capacity.Contact us if you have require.we can design to full fill your require.

The follow Project is in Xi'an Military factory project

TUV large Truck vehicle Industrial Spray Booth with 3D lift inside 0





About Us:
JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
treatment equipments.
Main Product:
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)

TUV large Truck vehicle Industrial Spray Booth with 3D lift inside 1
China North Produce Base (Jiangsu,Since 2007)
TUV large Truck vehicle Industrial Spray Booth with 3D lift inside 2
Some of our Project.
TUV large Truck vehicle Industrial Spray Booth with 3D lift inside 3

----------------------------------------FAQs-----------------------------------------

Are you Trade company or manufacturer?

We are the manufacturer with export liscence.We have two factory in Guangzhou and  in Jiangsu,China.

How can we cooperation?

How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.

How about after sale serivce?

1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
