|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Export Pacakge or Metal Package|
|Payment Terms:||TT or LC|
|Supply Ability:||2000sets Per Year|
|Name:||Auto Spray Booth||Power Supply:||380V/50HZ/3Ph Or Other Option|
|Heat System:||Diesel,gas,steam,electric Or Other Option||Main Door:||Fold Style Or Electric Rolling Style|
|Motor:||Chinese Brand Or Import Brand||Control Sytem:||Switch Style Or PLC Touch Screen Control|
|Wall:||EPS,Rock Wool Of PU For Option||Color:||White Or Other Option|
|Total Power:||16kw||Internal Size:||6.9x4x2.65m|
|Vehicle Style:||Car||Market Require:||Austrialia /Newzealand|
NZS Auto Paint Spray Room,
Light Box Auto Paint Spray Room,
Truck Paint Booth

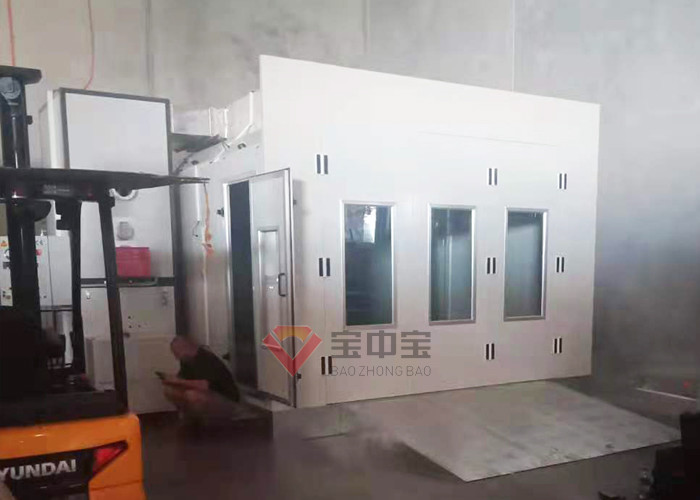

Customized Car Spray Booth Bzb-8000au for Australia/Newzealand Market BZB-8000AU
This model is mostly applied in the high-end brand car 4S shop and high-level repair factories.
BZB-AU Spray booth 6.9m*4m*2.65m
Inside dimension: 6900×4000×2650mm(L×W×H)；
Front door dimension: 3000×2600mm(W×H)；
Working door dimension: 800×2000mm(W×H)；
Drive through,two sets main door(front and back),
two sets of personal door.
1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS board; 0.6 thick colored steel.
Roof panel: 0.8mm galvanized sheet;
2) Basement: steel structure base; two line grilles, three line diamond plates; height is 300mm;
900mm width three ramps; Drive through,two sets ramp(front and back)
Air circulation system:
|Blower Capacity: 25000m3/h||Blower Capacity: 25000m3/h|
|Pressure: 800Pa||Pressure: 800Pa|
|Rolling Speed: 900rpm||Rolling Speed: 900rpm|
|Power: 7.5kw||Power: 7.5kw|
|Quantity: 1sets||Quantity: 1sets|
Generator: back upper intake air,back up extract air,quadrate steel frame,coated steel; (Chinese motor)
Air purification system: G3 grade, Pockets filter Pre-filter, EU5 / F5 high efficiency filter (ceiling filter),
green fiber glass filter / G3 grade floor filter; M style simple pre-filter.
Heat system: stainless steel SUS304 heat exchanger, RIELLO FS20 Gas burner , heating capacity is 180000Kcal/h,
electric damper from spraying to baking cycle; oil consumption 4~6L/set; the
Spray to baking switch: Pneumatic Damper
Chimney Duct: 9 meters stainless ducting and one chimney hood
Air duct: 16m stain ducting,1 pc reducer. 1 win-proof inlet, 1 water-proof exhaust.
heating time is 5~7 minutes;
Max heating temperature:80degree;
Ceiling Lights: 10Groupsx4Pcs=40Pcs x40W ; Side lights: 8Groupsx2Pcs=16pcs x 36W
Glass: all glass is clear tempered glass.
Control box: CE standard control system, Lighting switch, spraying, risen-temperature spraying, baking,
baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm;
Total power: 17KW
JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)
China North Produce Base (Jiangsu,Since 2007)
Some of our Project.
Are you Trade company or manufacturer?
We are the manufacturer with export liscence.We have two factory in Guangzhou and in Jiangsu,China.
How can we cooperation?
How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.
How about after sale serivce?
1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
