|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Export Pacakge or Metal Package|
|Payment Terms:||TT or LC|
|Supply Ability:||2000sets Per Year|
|Name:||Spray Painting Lines||Power Supply:||380V/50HZ/3Ph Or Other Option|
|Using Energy:||Diesel,gas,steam,electric Or Other Option||Main Processes:||Pre-treament, Clean, Sanding,paint, Drying|
|Motor:||Chinese Brand Or Import Brand||Control Sytem:||Switch Style Or PLC Touch Screen Control|
|Wall:||Metal Sheld,EPS,Rock Wool Of PU For Option||Color:||White Or Other Option|
|Application::||Metallic Products||Speed Of Conveying Chain:||1.0-2.5m/minute|
|Substrate:||Steel, Stainless Steel, Iron||Energy Sources:||Water, Electricity,gas|
Downdraft Paint Baking Booth,

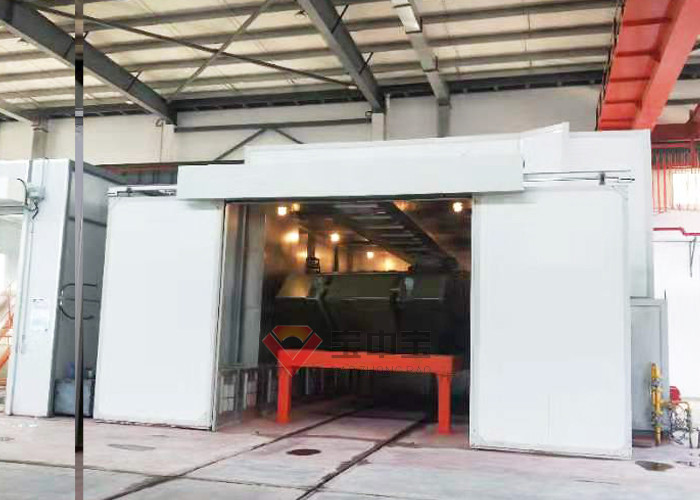

Tank Military Painting Booth
Military tank spray paint booth Exclusive high-end paint room on Sale
Widely used in military Production about painting production line.It is a automatic painting line on
which the workers to produce different kind of metal product,it can keep the prefect surface finishing process.
Widely working range, high speed and high accuracy. It is especially suitable for spraying Industrial parts such as
metal, vehicle and others, and can be integrated with auxiliary devices such
as turntable, slide conveyor chain system, etc.
workpiece paint pre-treatment--cathodic electrodeposition primer coating-- PVC glue--weld seam sealing--
middle coating--surface coating and drying-- check and repair process--and complete coating of paint material
--products inspection work.
Some necessary main Equipment for some main process:
1. Flood wash equipment
2. Degrease equipment
3. Electrophoresis equipment
4. Electrophoresis equipment
|Chain conveyor system||1. Aluminium fixture block
2. Chain transit unit
3. Steel alloy track
4. Inverterters & gear motor
3. Exhaust gas treatment system
4. Filter system
|Oven||1. IR tunnel oven and UV machine
2. TEM:50-150 degree
3. Heating pipe and UV lamp
4. Mirror stainless steel inner wall
5. T50-150mm rock wood thermal insulation
6. China motor
|Rotation unit||1. Selt-rotation sysem 2 sets
2. Auto spray gun hold(with scale)
3. Selt-rotation motor
4. Magiceye sensor
5. DEVELBISS spray gun 6 sets
|Control system||1. Switch or PLC touching screen
2. air switch & overload ensure
3. Branded power switch & indicator light
4. Branded pneumatic elements & Magnetism valve
This is Customer-made Industry Spray Booth base on customer's require.Workshop space.
Produce Capacity.Contact us if you have require.we can design to full fill your require.
The Follow project is for Military Product Painting Line Project.Attached follow standard
dimention for reference
JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)
China North Produce Base (Jiangsu,Since 2007)
Some of our Project.
Are you Trade company or manufacturer?
We are the manufacturer with export liscence.We have two factory in Guangzhou and in Jiangsu,China.
How can we cooperation?
How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.
How about after sale serivce?
1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
