|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Price:||USD20000-50000 Per Unit|
|Packaging Details:||Export Pacakge or Metal Package|
|Payment Terms:||TT or LC|
|Supply Ability:||2000sets Per Year|
|Name:||Plane Spray Booth||Power Supply:||380V/50HZ/3Ph Or Other Option|
|Using Energy:||Diesel,gas,steam,electric Or Other Option||Main Door:||Fold Style Or Electric Rolling Style|
|Motor:||Chinese Brand Or Import Brand||Control Sytem:||Switch Style Or PLC Touch Screen Control|
|Wall:||Metal Sheld,EPS,Rock Wool Of PU For Option||Color:||White Or Other Option|
|Application:||Bus/truck Or Other Metallic Products||Energy Sources:||Water, Electricity,gas|
|Door Width:||More Than 10meter||Dimention:||As Require|
Spray Booth for Large Bus/Truck/Plane/Train Soft Large Doors Designer
We accept Different kind of big plane/boat paint equipment.We have strong design team to full fill customer's requrie.

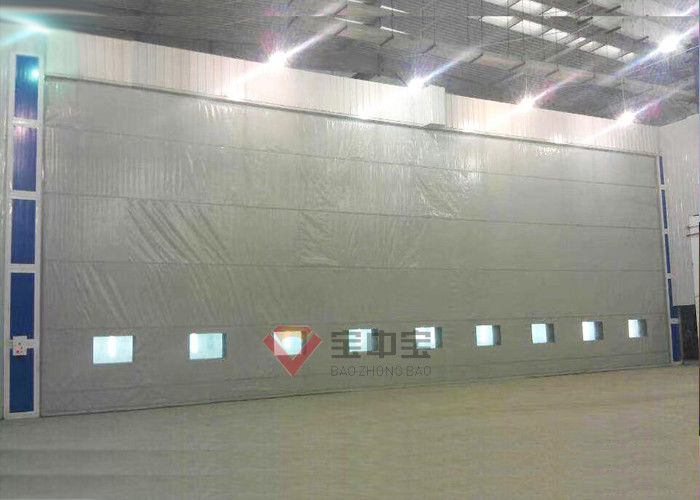

Door Design: Folding flexible style suitable for wide door.
|basement||2 basements.single one size:13000×840 mm(L×W)|
|front door||Side opening door,4 doors,4000×4500 mm(W×H),color:white|
|operation door||2 doors,700×2000mm(W×H),color:white|
|wall||3 Steel reinforcements in the wallboard,3 Steel composite beams in roof.wallboard thickness:70mm,width:1150mm,filled with EPS.two color plate:0.476mm,color:white|
|lamps||Top lamps:18*4=72,36w.bottom lamps:14*4=56,36w,(left/6,right/6,back/2)|
|structure||Air-in from the roof,Square pipe steel framework|
Air-in blower:4 Double inlet air centrifugal fans.technical parameters of each one:model:YDW5.6M,power:5.5KW,capacity:15000m3/h.
Air-out blower:2 Double inlet air centrifugal fans,technical parameters of each one:model:DKF,power:11KW,capacity:36000m3/h.belt drive
|heating system||2 Riello G20 burners,2 sets of stainless steel heat exchanger,2 electric throttle perform spray paint cycle.maximum calorific value:400000Kcal/h.|
|Primary filter, advanced filtering, glass cotton filter,M type activated carbon filter and single-layer flat drive fiber glass filter.|
|roof||Galvanized sheet bending roof|
|control system||Spray paint,lacquer that bake of temperature, drying time setting, lighting switch, failure indicator, temperature controller. The power switch, stop switch. With temperature limiter.|
|1×220 3×380 50HZ|
|maximum working temperature||80℃|
This is Customer-made Industry Spray Booth base on customer's require.Workshop space.
Produce Capacity.Contact us if you have require.we can design to full fill your require.
The follow Project is Changhe Aircraft in the second process project.
JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)
China North Produce Base (Jiangsu,Since 2007)
Some of our Project.
Are you Trade company or manufacturer?
We are the manufacturer with export liscence.We have two factory in Guangzhou and in Jiangsu,China.
How can we cooperation?
How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.
How about after sale serivce?
1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
