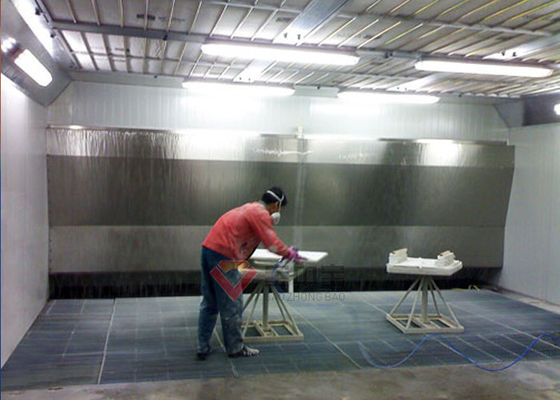

Bake Booth BZB Furniture Spray Booth Wool Painting Equipments Water Curtain Paint Booth

Bake Booth BZB Furniture Spray Booth Wool Painting Equipments Water Curtain Paint Booth

Bake Booth BZB Furniture Spray Booth Wool Painting Equipments Water Curtain Paint Booth
video
Bake Booth BZB Furniture Spray Booth Wool Painting Equipments Water Curtain Paint Booth
Product Details:
Place of Origin: China
Brand Name: BZB
Certification: CE,TUV
Model Number: BZB-FX3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD4000-35000
Packaging Details: Export Pacakge or Metal Package
Delivery Time: 14-45
Payment Terms: TT or LC
Supply Ability: 2000sets Per Year
Contact Now
Detailed Product Description
Name: Furniture Spray Paint Booth Power Supply: 380V/50HZ/3Ph Or Other Option
Using Energy: Diesel,gas,steam,electric Or Other Option Main Door: Fold Style Or Electric Rolling Style
Motor: Chinese Brand Or Import Brand Control Sytem: Switch Style Or PLC Touch Screen Control
Wall: EPS,Rock Wool Of PU For Option Color: White Or Other Option
Application: Wool Furniture Baking Temperatuer: 40-50 ℃
Booth Dimention: As Requrie Ventilation: Side Exhaust,full Down Draft,semi-down Draft
Filter Style: Dry Filter Or Wet Filter
High Light:

BZB Furniture Spray Booths

,

BZB Dry Paint Booth

,

TUV Furniture paint Booths

Paint by manual for Furniture Paint Room Customied Design Coating Spray and Bake Booth




Some Main Specification for reference


Inner dimension

12000×4500×4000 mm(L×W×H)

External dimension

12146×6096×4600 mm(L×W×H)

Air return style

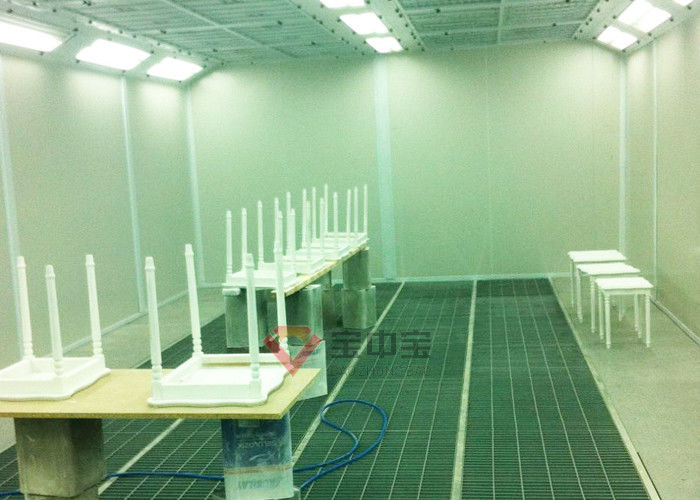

Full down craft. 2 rows trench on the floor for air return. Single row trench size: 10000×840 mm(L×W). The trenches are covered by galvanized steel grids.

Main door

1set, Single open door, three door leafs, Dimension:3300×3900 mm(W×H), with aluminum alloy frames and 5mm thick tempering glass windows. Big Aluminum hinges.

Personal door

2 sets on side, single dimension: 700×2000mm(W×H), with pressure locks and tempering glass windows.

Body Wallboards

Body wallboards are 70mm thickness EPS panels double face with 0.426mm color steel skin. Tongue & Groove Style.

Roof panel

Roof panels are 0.8mm galvanized steel plates bended making.

Lights

Ceiling light: 16groups x 4pcs=64 pcs
Side light: 10groups x 2pcs=20 pcs

Power unit cabinets

Whole spray booth adopt two groups power unit. Per power unit have 2sets air intake fans and 1set exhaust fan.
Power unit cabinets are made of sprayed steel structures, double layer galvanized steel covers and inside filled by rock wool protection materials. Good sealing and low noise.

Air intake and exhaust fans

Total have 4 sets intake fans, Single model: Double big holes centrifuge YDW4.5L fan, power: 4kw. capacity: 12500m3/h. Total air intake capacity: 50000 m3/h.

Total have 2 sets exhaust fans. Single model: DKF, power:7.5kw, capacity: 20000m3/h, belt drive. Total air exhaust capacity: 40000m3/h

Exhaust ducts

Ducts are made of 0.8mm galvanized steel plates with die flanges. Quantities: 8M straight ducts and two 90degree elbows.

Heating system


Total adopt 2 sets Original Italy Riello G20 diesel burner, Total heating capacity: 360000Kcal/h. with 2 sets 20N Switzerland original electric actuator can automatically achieve from spraying to baking alternate.
2mm thick SUS304 stainless steel making heat exchanger, double layer heating fins, argon arc welding, equipped explosion-proof vent.

Filters

Muti-layer filtering Structure. Air intake entrance have primary filter. Ceiling have high efficient filter blocks. Floor under grids have fiber glass filters. Exhaust cabinet have two layers fiber glass filters and one layer active carbon for paint smell.

Electric control

Adopt turning buttons style control box, Main components are Siemens or Schneider brand. With Light Switch, normal spray switch, constant temperature spray switch. Baking Switch, Emergency Stop, Breakdown Alarm, time adding, time and temperature set switch and so on.

Support power

220V single phase for lights. Three phase, 380V, 50Hz

Max working temperature.

50℃

Air flow speed

≥0.25m/s (no loading)

Total power

34.5KW
