|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Export Pacakge or Metal Package|
|Payment Terms:||TT or LC|
|Supply Ability:||2000sets Per Year|
|Name:||VOC Treatment System||Power Supply:||380V/50HZ/3Ph Or Other Option|
|Heat System:||Diesel,gas,steam,electric Or Other Option||Motor:||Chinese Brand Or Import Brand|
|Control Sytem:||Switch Style Or PLC Touch Screen Control||Color:||White Or Other Option|
|Application:||Different Kind Of Instrial Waste Gas||Energy Sources:||Water, Electricity,gas|
|Installation Service:||Offer||Body Material:||Carbon Steel Or Stainless Steel|
|Adsorbing Material:||Activated Carbon||Specification:||10-30m3|
Xylene Filter VOCs Treatment System,
BZB Waste Gas VOC Treatment System,
Xylene Filter VOC Treatment System
Factory Supply Waste Organic Gas Xylene Filter Catalytic Oxidation Treatment Equipment
Environmental protection treatment of atmospheric pollutants
|1||Direct catalytic combustion(CO)|
|4||Nitrogen desorption+Condensate recovery|
|5||Micro foam method|
|6||UV Photocatalytic oxidation|
|7||Activated carbon adsorption+Nitrogen desorption+Condensate recovery|
Introduction of catalytic combustion device
Catalytic combustion is a typical gas-solid phase catalytic reaction, and its essence is the deep oxidation involving
active oxygen. During the catalytic combustion process, the catalyst surface has an adsorption effect, so that the
concentration of reactant molecules on the surface increases the reaction rate and accelerates the reaction.
Flameless combustion occurs with the aid of a catalyst, which is oxidatively decomposed into CO2 and H2O,
and simultaneously releases a large amount of thermal energy, thereby achieving the purpose of purification.
The catalytic combustion device is provided with a temperature probe and a supplementary cooling valve. When
the reaction temperature of the catalytic combustion chamber exceeds a set upper limit, the supplementary cooling
valve is opened to supplement the fresh air, and the intake air source is diluted and cooled to protect the equipment
to extend its service life and prevent accidents.

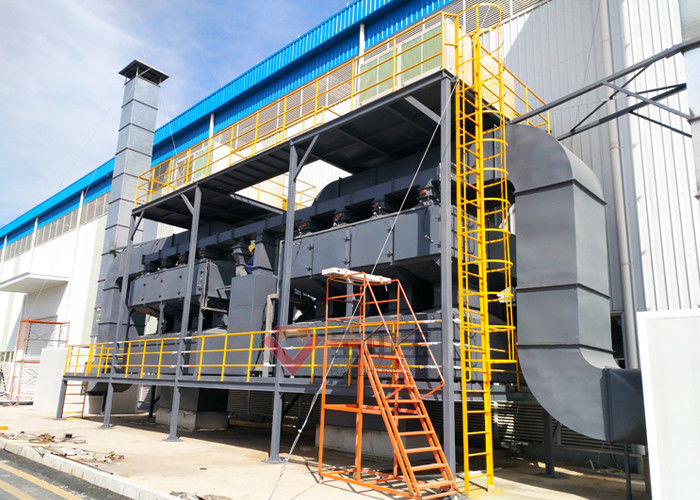

The main structure of the device is composed of the main unit of the purification device, the induced draft fan and
the electrical control elements. The main unit of the purification device is an integrated structure composed of a
heat exchanger, a preheating chamber, a catalytic bed, a flame arrester and an explosion-proof device. The entire
periphery of the furnace body is thermally insulated with a thickness of 100 mm. The surface temperature of the
furnace body is ≤ ambient temperature +30 ºC
This is Customer-made Vocs treament Project base on customer's require.Workshop space.
Produce Capacity.Contact us if you have require.we can design to full fill your require.
JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
of Industry Product ect.

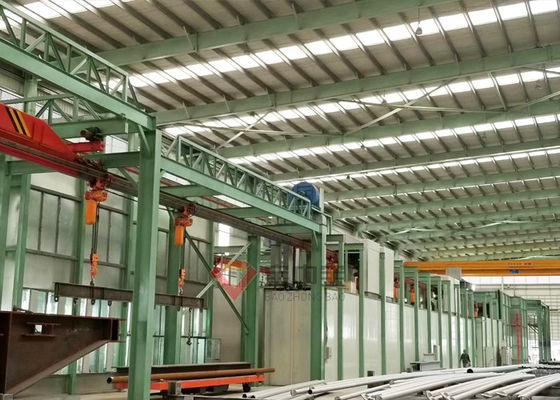

Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)
China North Produce Base (Jiangsu,Since 2007)
Some of our Project.
Are you Trade company or manufacturer?
We are the manufacturer with export liscence.We have two factory in Guangzhou and in Jiangsu,China.
How can we cooperation?
How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.
How about after sale serivce?
1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
