| Place of Origin: | China |
| Brand Name: | BZB |
| Certification: | CE,TUV |
| Model Number: | BZB-HX1 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD20000-500000 |
| Packaging Details: | Export Pacakge or Metal Package |
| Delivery Time: | 30-120 |
| Payment Terms: | TT or LC |
| Supply Ability: | 2000sets Per Year |
| Name: | Sheet Metal Paint Lines | Power Supply: | 380V/50HZ/3Ph Or Other Option |
|---|---|---|---|
| Using Energy: | Diesel,gas,steam,electric Or Other Option | Main Door: | Fold Style Or Electric Rolling Style |
| Motor: | Chinese Brand Or Import Brand | Control Sytem: | Switch Style Or PLC Touch Screen Control |
| Wall: | Metal Sheld,EPS,Rock Wool Of PU For Option | Color: | White Or Other Option |
| Transport: | Push By Hand | Production Bitch: | 4-10minutes /Car |
| Application: | Car Repair | Energy Sources: | Water, Electricity,gas |
| High Light: | Auto Sheet Metal Painting Line for Garge Shop,10min Auto Sheet Metal Paint Line,TUV Automotive Repair Paint Line |
||

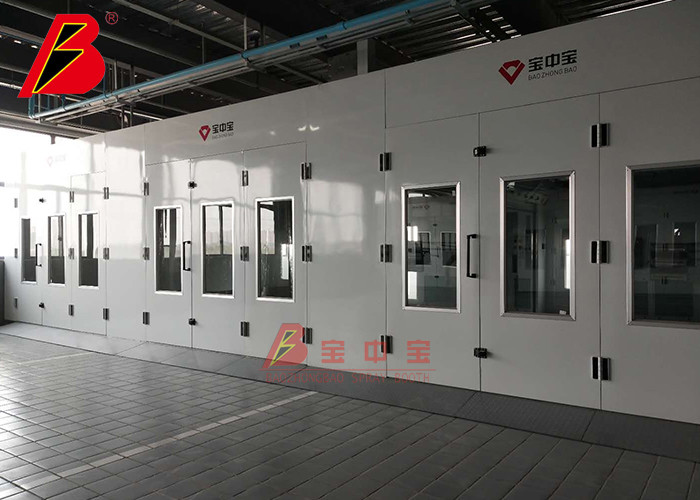

Paint Line Auto Metal Work Production Line High Efficiency Spray Booth 4s Shop Choice
Sheet Metal Paint Line Equipment List in Normal
| No. | Item Name/ Main Function |
Main Specification | Total Price(USD) |
| 1 | Awaiting Repaired/ Metal Sheet Disassembly | Station size: 7000×3550×3100 mm, ceiling cover frame, three sides with PVC curtain, back wall 50mm thick EPS panel. |
1 sets* |
2 |
Puttying (Be an old coating polish and putty station.) |
|
1 set* |
3 |
Surface Coating (Paint spraying operations, no load air speed at 0.5m/s.) |
|
1 set* |
4 |
Putty Polishing (Be a polish station.) |
A. Inside size 6900×4000×2650 mm (L×W×H), Three sides with PVC curtain, back wall 50mm thick EPS panel. |
1 set* |
| 5 | Putty Polishing (Be a polish station. .) |
A. Inside size 6900×4000×2650 mm (L×W×H), Three sides with PVC curtain, back wall 50mm thick EPS panel. B. 8 units*4pcs=32pcs 36W Philips Lamp; |
1 set* |
| 6 | Clean and Cover (Be as a Clean and Cover station.) |
Inside size 6900×3550×3100 mm (L×W×H), front and back sides are curtain, bottom and ceiling with 8 units*4pcs=20pcs 36W Philips Lamp; | 1 set* |
7 |
Surface Coating (Paint spraying operations, no load air speed at 0.5m/s.) |
|
1 set* |
8 |
Baking (Diesel burner matching infrared lamp does the sectional repair, oil and electric dual purpose. |
A. Inside size 6900×4000×2650 mm (L×W×H), cabin using 50mm thick double 0.476mm colorful steel skin rockwool panel, front equipped one set main door, two sides door opening with 2 sets rolling curtain, electric drive. B. One set 5.5KW circulating fan, model TAE-450H, air capacity 15000m3/h, motor outside, belt drive. |
1 set* |
| 9 | Polish | Station inside 7000×3550 mm, ceiling cover frame, three sides with PVC curtain, back wall 50mm thick EPS panel. | 1 set* |
| 10 | Assembly | Station inside 7000×3550 mm, ceiling cover frame, three sides with PVC curtain, back wall 50mm thick EPS panel. | 1 set* |
| 11 | Electric rolling door | Side door opening with 3 sets rolling curtain, electric drive. | 3 sets* |
| 12 | Track (Cars translational on the assembly line.) |
Track per row 41.3, equipped 6 rows crosswise track, total 247.8 meters, movable trolley. | 247.8 meters* |
| 13 | Trolley (Cars translational.) |
Total 10 stations, equipped 48 sets trolley with brake system. | 48 sets * |
Product Application
We are professional to produce metal sheet painting line for 4S shop.Have cooperated with 48 main car
4 S shop in China.The system can bring the very high efficiency for the 4S car repair shop.
The pattern of Sheet metal paint line
With return track. Cars can movable left to right or right to left. Equipped 48 sets trolley with brake function.
Every Sheet Metal Paint Line equipment bottom has 6 rows track including 4 rows drive track and 2 rows
Sanding Middle Coat and Primer Paint booth 2 sides equipped with manual curtain. Surface Coating booth
and Baking booth total equipped 3 sets electric rolling door, can speed the work efficient.
About Us:
JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
treatment equipments.
Main Product:
Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
of Industry Product ect.
Two Produce Base:
China South Produce Base (In Guangzhou,Since 1999)
China North Produce Base (Jiangsu,Since 2007)
Some of our Project.
----------------------------------------FAQs-----------------------------------------
Are you Trade company or manufacturer?
We are the manufacturer with export liscence.We have two factory in Guangzhou and in Jiangsu,China.
How can we cooperation?
How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
3. Other coopeation style.
Keep flexible and discuss.
How about after sale serivce?
1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. On-the spot trainging and installation can be met if required.
6. On time delivery.
7. One Year Gruantee.
